The SignalR for ASP.NET Core JavaScript Client, Part 1 – Web Applications

The first official release of SignalR for ASP.NET Core – alpha1 – was just released. In this release, all SignalR components were rewritten to make SignalR simpler, easier to use and more reliable.

The SignalR JavaScript client has always been a fundamental part of SignalR. Unfortunately, it has a few limitations which made it hard to extend or use outside the browser. The rewrite allowed to introduce changes which allow to take the client outside the browser (no more dependency on jQuery, YAY!) and open new scenarios. And this is what this blog post will focus on. I split the post to two parts. In the first part I will show how to use the client in a web application from both JavaScript and TypeScript. In the second, part we will look at NodeJS.

The plan for this part is to recreate the chat application from the tutorial on the previous version of SignalR and then to convert it to use the new SignalR Server and JavaScript client. The sample is simple enough to allow us to focus on SignalR aspects rather than on application intricacies. As a bonus, we will see what the experience of porting an application from the previous version of SignalR is. I created a github repo for the application where each commit is a step described in this post. I will refer to particular commits from this post to show changes for a given step.

Setting up the Server

Let’s start from creating an empty ASP.NET Core application. We can do that from command line by running the dotnet new web command. (See this step on github).

Once the application is created we can start the server with dotnet run and make sure it works by navigating to http://localhost:5000 from a browser.

After we ensured that the application runs we can add SignalR server components. First, we need to add a reference to the SignalR package to the SignalRChat.csproj file (See this step on github).

Now we can add the Chat Hub class – we will just copy the code from tutorial and tweak a few things. This is how the hub class looks after the changes:

using System;
using Microsoft.AspNetCore.SignalR;
namespace SignalRChat
{
    public class ChatHub : Hub
    {
        public void Send(string name, string message)
        {
            // Call the broadcastMessage method to update clients.
            Clients.All.InvokeAsync("broadcastMessage", name, message);
        }
    }
}

The changes we made were only cosmetic – we removed the reference to the System.Web namespace, added 'Core' to the Microsoft.AspNet.SignalR so that it reads Microsoft.AspNetCore.SignalR. We also changed how we invoke the client-side method by passing the method name as the first parameter to the InvokeAsync call. (See this step on github).

Now that we created a hub we need to configure the application to be aware of SignalR and to forward SignalR related messages to our hub. It’s as easy as calling AddSignalR extension method in the ConfigureServices method of our Startup class and mapping the hub with the UseSignalR method. We will also add the static files middleware which will be responsible for serving static files. The Startup class should look like this:

public class Startup
{
    public void ConfigureServices(IServiceCollection services)
    {
        services.AddSignalR();
    }

    public void Configure(IApplicationBuilder app, IHostingEnvironment env)
    {
        if (env.IsDevelopment())
        {
            app.UseDeveloperExceptionPage();
        }

        app.UseFileServer();

        app.UseSignalR(routes =>
        {
            routes.MapHub<ChatHub>("chat");
        });
    }
}

(See this step on github).

And this is all the work we had to do create a functional SignalR chat server. Now we can focus on the client side.

The JavaScript Client

In the new version of SignalR the JavaScript client is distributed using npm. The npm module contains a version of the client that can be just included in a web page using the tag, as well as, typings and modules that can be consumed from TypeScript. To get the client to your machine you need to install npm if you haven’t already and run:

npm install @aspnet/signalr-client

The client will be installed in the node_modules folder and you can find the necessary files to include in the node_modules/@aspnet/signalr-client/dist/browser folder. You may wonder why there are so many files in this folder and what purpose they serve. Let’s go over them then and explain.

First, you will find that there are two sets of files – files that contain ES5 in the names and files that do not contain ES5 in the names. SignalR JavaScript uses ES6 (a.k.a EcmaScript 2015) features like Promises or arrow functions. Not all browsers however, support ES6 (looking at you Internet Explorer). The files without ES5 in the names are meant to be used in browsers that support ES6. The files that contain ES5 in the names are the ES6 files transpiled to ES5. They are ES5 compatible and include all required dependencies. The downside of the ES5 files is that they are much bigger than ES6 files.

Another interesting set of files are files containing msgpackprotocol in the name. The new version of SignalR supports custom hub protocols – including binary protocols – and has built-in support for a binary protocol based on MessagePack. The JavaScript implementation of the MessagePack based hub protocol (using the msgpack5) turned out to be quite big so we moved it to a separate file. This way you can include the MessagePack hub protocol only if you want to use it and will not pay the price if you don’t care.

You will also find that each file has a min counterpart. These are just minified versions of the corresponding files. You will want to use the minified versions in production but debugging is much easier with non-minified files so you may want to use non-minified versions during development.

Finally, there is also the third-party-notices.txt file. These are notices for the msgpack5 library and its dependencies used in the MessagePack hub protocol implementation.

Using the SignalR JavaScript Client from JavaScript

Now, that we know a little bit about the JavaScript client let’s update our application to use it.

First, let’s copy all the files from the node_modules/@aspnet/signalr-client/dist/browser folder to a new ​scritps/signalr folder under the wwwroot. (See this step on github).

After the files are copied, let’s create the index.html file in the wwwroot folder and paste the contents of the html file from the tutorial. (See this step on github).

If you try to run the application at this point it will not work. The index.html has references to files like the jQuery library or the old SignalR client which don’t exist. Let’s fix that. Note that even though jQuery is no longer required to the new SignalR client I will continue to use it to minimize the number of changes I need to make. All in all this is not a tutorial on how to remove jQuery from your app so let’s not get sidetracked. Let’s start from sorting out the scripts situation. For jQuery, I will replace the link with the one to the jQuery CDN. For SignalR, I will replace the link to the signalR-2.2.1.min.js file with signalR-client-1.0.0-alpha1.js (feel free to use the ES5 version if you are using a browser that don’t support ES6 features) and remove the link to hubs since hub proxies are currently not supported. (See this step on github (github trick – notice that the link ends with ?w=1 – try removing it and see what happens. Very useful when reviewing some PRs)).

Now we can finally fix the code. Fortunately, this is not a lot of changes:

  • Instead of using proxies we will just create a new HubConnection
  • To register the callback for the client side broadcastMessage method we will use the on function
  • We will replace the done method used by jQuery deferreds to the then used by ES6 promises
  • We will invoke hub methods with the invoke function

(See this step on github).

That’s pretty much it. If you run the application now you should be able to send and receive messages.

Using the JavaScript Client from TypeScript

We now know how to use the new JavaScript SignalR client from JavaScript code. The SignalR client module contains also all necessary bits that make it possible to be consumed from TypeScript. To see how it works let’s take our chat application a bit further and convert it TypeScript.

First, make sure that you have a recent TypeScript compiler installed – run tsc --version from command line. If running the command fails or you have an older version installed install the latest one using this command:

npm install typescript -g

After installing or updating the typescript compiler we will initialize a new project by running

tsc --init

in the project folder. This will create a tsconfig.json file which will look like this:

{
  "compilerOptions": {
    "target": "es6",
    "module": "commonjs",
    "strict": true,
    "noImplicitAny": true
  }
}

after performing some cleanup. We will also add a new chat.ts file which we will leave empty for now. If you run the tsc command from project root you should see an almost empty chat.js file generated from your chat.ts file. (See this step on github).

Because we are using TypeScript and will bring dependencies using npm we will no longer need JavaScript files for the browser so let’s delete them. (See this step on github).

To be able to add and restore dependencies the client will need, let’s create a package.json file by executint the npm init command. We will leave default values for almost all settings except for the project name which needs to be lowercase.

PS C:\source\SignalRChat\SignalRChat> npm init
This utility will walk you through creating a package.json file.
It only covers the most common items, and tries to guess sensible defaults.
See `npm help json` for definitive documentation on these fields
and exactly what they do.

Use `npm install <pkg> --save` afterwards to install a package and
save it as a dependency in the package.json file.

Press ^C at any time to quit.
name: (SignalRChat) signalrchat
version: (1.0.0)
description:
entry point: (chat.js)
test command:
git repository:
keywords:
author:
license: (ISC)
About to write to C:\source\SignalRChat\SignalRChat\package.json:

{
"name": "signalrchat",
"version": "1.0.0",
"description": "",
"main": "chat.js",
"dependencies": {},
"devDependencies": {},
"scripts": {
"test": "echo \"Error: no test specified\" && exit 1"
},
"author": "",
"license": "ISC"
}

Is this ok? (yes)
PS C:\source\SignalRChat\SignalRChat>

Now let’s add our dependencies – signalr-client, jquery and jquery typings (they enable using jquery from TypeScript). We will use the --save-dev option to save the dependencies as dev dependencies in the package.json file.

npm install @aspnet/signalr-client --save-dev
npm install jquery --save-dev
npm install @types/jquery --save-dev

We also need to install browserify – a tool which we will use to create the final script to be used by the browser:

npm install -g browserify

(See this step on github).

We can now start working on the code. First, we need to import the dependencies we are going to use. We can do that by adding the following two lines at the top of our chat.ts file:

import * as signalR from "@aspnet/signalr-client"
import * as $ from "jquery

Now we can move the script from our .html file to the .ts file. If you do that and play a little bit with the code you will notice that intellisense now tells you about class members and function parameters and if you press F12 (in Visual Studio Code) it will take you to the function header. Another thing, you will see is an error on line 5.  This TypeScript telling you that there is a type mismatch for the parameter passed to the jQuery val() function – the prompt() function can return null which is not a valid input for the val() function.

VSCodeSignalR

In our case we know that prompt will return string so we will just cast the result to string to suppress the error.

Since we moved the function to the .ts file we can now remove all the JavaScript code from our index.html file. We can also remove all the tags since we no longer depend on them to bring dependencies (we also already deleted the scripts). (See this step on github).

Let’s compile our chat.ts file now by running tsc command. If you look at the generated chat.js file you will notice that it looks pretty much the same as the source chat.ts file with some additional lines at the top. You will also notice that it does not have the required dependencies (i.e. signalr-client and jquery). This is where browserify comes into play. We will use browserify to generate the final version of the file with all the dependencies. Let’s run the following command (you may need to create the wwwroot/scripts folder if one does not exist) from the project folder:

browserify .\chat.js -o .\wwwroot\scripts\chat.js

Take a look at the chat.js file that was created by browserify and now you will see that the file is much bigger and contains all the required dependencies. If we include this file in our index.html with the tag, start the application and open in the browser you will see that it works and you can send and receive messages. (See this step on github). We could even automate build steps (e.g. with gulp) but it’s out of scope for this post.

Summary

In this post, we looked at using the new SignalR JavaScript client in web applications. We learned how to use the client from both JavaScript and TypeScript. We tried to port an application using the previous version of SignalR to see how hard it is. In the next part, we will take a look at using the client in NodeJS applications.

Advertisements

Crusader for trailing-whitespace-free code

For whatever reason I hate trailing whitespaces. It might be just my pet peeve (although unjustified conversions with the ‘as’ operator instead of using just regular cast in C# are the winner in this category) because ultimately it is not something that is very important but still, trailing whitespaces annoy me. Sadly, even though I hate trailing whitespaces I tend to introduce them. One of my colleagues, who would flag all of the occurrences of trailing whitespaces in my pull requests even suspected I introduced them intentionally to check if code was being reviewed carefully. I am not that treacherous though and the reason was actually more mundane than that. I just did not see them. I did turn on the “View White Space” option in VS (which btw. made me hate trailing spaces even more) and started seeing all the trailing whitespaces introduced by other people but not by myself. The truth is that if you set Visual Studio to use the dark theme it is often hard to see a single trailing whitespace even with the “View White Space” option turned on. You would think that fixing all the trailing whitespaces in a project would fix the problem but I don’t think it actually would. Firstly, typically you don’t want to touch code that is not relevant to your change. Secondly, even if you fixed it as a separate change (which is actually not that difficult with regular expressions) you will inadvertently introduce a trailing whitespace or two in your very next commit. If you want to be careful and are using git you can do git diff {--cached} and it will highlight trailing whitespaces like this:
git-diff
It’s not the best experience though. You need to leave your editor to see if you have any problems and if you do you need to “map” the diff to your code to find all the lines that need to be fixed. This was driving me crazy so I decided to do something about this. The idea was to show trailing whitespaces in a visible way directly in the editor as soon as you introduced them. This is actually quite easy to do for Visual Studio – you just create an extensibility project (note you have to have Visual Studio SDK installed) – New Project, Template -> Visual C# -> Extensibility and select “Editor Text Adorment – modify a few lines and you are done. It literally took me no more than 2 hours to hack together an extension that does it. It highlights all the trailing whitespaces and dynamically checks if you have any trailing whitespaces in front of your cursor when you type – if you do it will highlight them too. This is how your VS looks like if you have trailing whitespaces:
trailing-spaces-vs
I did use this extension for the past three days (extensive QA rules!) and shared it with my colleague (the one who would before always complain about me introducing trailing whitespaces). It worked and did not feel obtrusive (granted we do not have a lot of trailing whitespaces in the projects we work on but it turned out we do have more than we thought we had). Now, if you are a crusader for trailing-whitespace-free code, you can try it too. (Actually, you can try it even if you aren’t.) I posted this extension on the VS gallery. You can just download the .vsix and double click it to install, or you can install it directly from VS by going to Tools->Extensions and Updates, selecting “Online” on the left side, typing the name (or just “Flagger”) and clicking install.
trailing-spaces-install

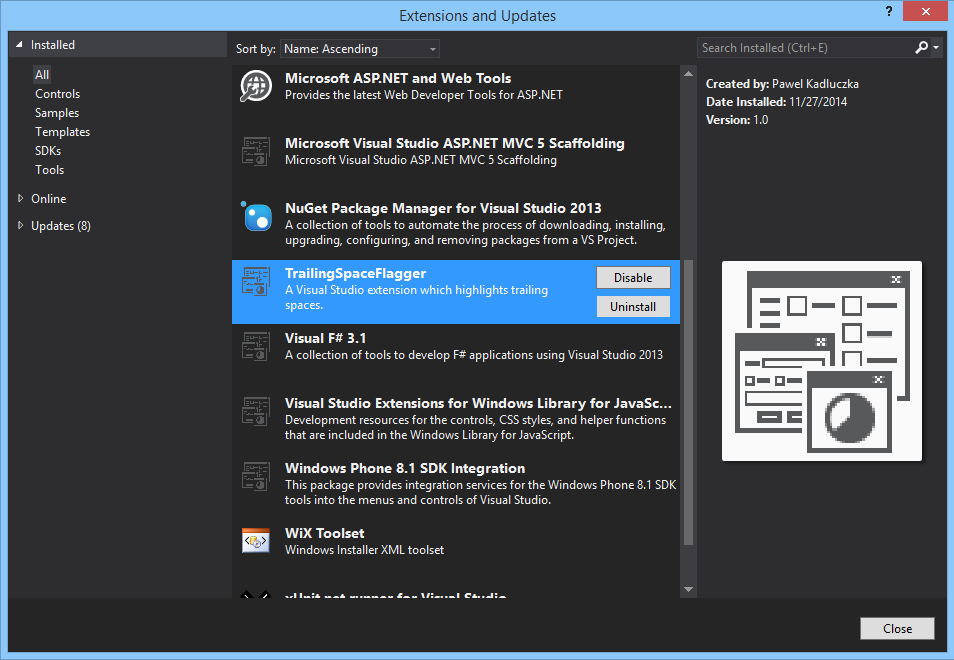

If you have too many whitespaces or just think it does not work for you you can uninstall or disable the extension by going to Tools -> Extensions and Updates find the Trailing Space Flagger in the installed extensions and click the “Remove” or “Disable” button:
uninstall-flagger
As usual, the code is open source – you can find it on github.

Safe Git Clean with MSBuild

I like to clean my source tree once in a while. Unfortunately msbuild {whateverproject}.csproj /t:Clean often falls short – for more complicated solutions with multiple projects some temporary files generated during the build almost always are left on the disk. Removing these should not be a big deal given that the important files are under source control – I can simply remove everything that is not tracked. With git you do that with git clean -xfd command and the files are gone. Usually, this is the (sad) moment when I realize that there was that file you forgot to add to the index or this directory that was not supposed to be added to the index but had some “temporary” data I have been using for a couple of weeks now. To save myself a grief I came up with an MSBuild target that saves everything that is going to be deleted to a backup directory before the clean up. This way even if I missed something not everything is lost – I can go to the backup directory and restore the file.
The target itself turned out quite simple. The biggest problem was to make git commands work with MSBuild. It’s possible to run git commands with Exec task. However Exec task does not capture results of the command. The only way I found to capture the results was to redirect the command output to a file and then read the file contents to an ItemGroup with ReadLinesFromFile task. Not ideal for sure but seems to work.
Using the target is easy as the target takes only two optional parameters – BackupDir and DeleteBackupDir. BackupDir is the path to a directory where files that are not tracked should be saved. If the value is not provided files will be saved to a subfolder of the %TEMP% folder. DeleteBackupDir tells whether to delete the BackupDir if one exists – ‘false’ is the default value. An exemplary command would be:
MSBuild {projectfile} /t:SafeGitClean /p:BackupDir=C:\temp\backup /p:DeleteBackupDir=false
The target itself looks as follows:

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="4.0" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">

  <Target Name="SafeGitClean">
    <PropertyGroup>
      <BackupDir Condition="'$(BackupDir)' == ''" >$(Temp)\SafeGitClean$([System.Guid]::NewGuid())</BackupDir>
      <DeleteBackupDir Condition="'$(DeleteBackupDir)' == ''">false</DeleteBackupDir>
      <TempFile>$(Temp)\SafeGitClean_UntrackedFiles$([System.Guid]::NewGuid())</TempFile>
    </PropertyGroup>

    <Message Text="$(BackupDir)" />

    <RemoveDir
      Condition="'$(DeleteBackupDir)' == 'true' And Exists('$(BackupDir)')"
      Directories="$(BackupDir)" />

    <Exec Command="git ls-files --other &gt; $(TempFile)" />

    <ReadLinesFromFile File="$(TempFile)">
      <Output TaskParameter="Lines" ItemName="UntrackedFile" />
    </ReadLinesFromFile>

    <ItemGroup>
      <UntrackedFileFixed Include="@(UntrackedFile->Replace('/', '\'))" />
    </ItemGroup>

    <Delete Files="$(TempFile)" TreatErrorsAsWarnings="true" />

    <Copy
      SourceFiles="@(UntrackedFileFixed)"
      DestinationFiles="@(UntrackedFileFixed->'$(BackupDir)\%(Identity)')"
      OverwriteReadOnlyFiles="true" />

    <Exec Command="git clean -xfd" />
  </Target>

</Project>

You can also find it in my github repo: https://github.com/moozzyk/MSBuild-Tasks
